2004 CATERPILLAR C6.6

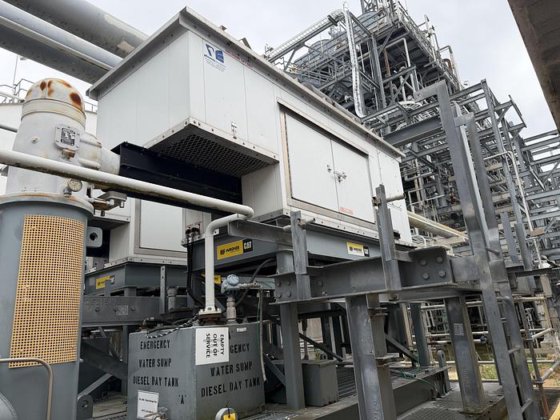

Skid-mounted, diesel-driven vertical turbine pump package originally engineered, fabricated, and supplied by Wagner Equipment Systems for emergency water service at the facility.

The unit consists of a Caterpillar C6.6 industrial diesel engine driving an Amarillo right-angle hollow-shaft gear drive, which in turn drives a vertical turbine pump assembly through a head-mounted column and discharge head. Discharge piping is 8-inch ANSI Class 150 carbon steel with a NIBCO flanged isolation valve, pressure gauge, and weather-protected control instrumentation. The skid sits on a poured concrete pad stenciled "EMERGENCY WATER PUMP

‍

Major Components

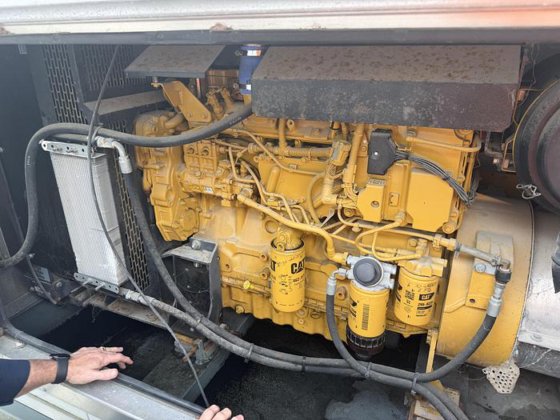

Caterpillar C6.6 Industrial Diesel Engine

• Manufacturer: Caterpillar

• Model: C6.6

• Arrangement Number: 373-8079

• Engine Serial No.: ME66E1792X (Wagner package plate lists 66621792)

• Country of Manufacture: United Kingdom

• 6-cylinder, turbocharged, ACERT-series industrial diesel

• Recent CAT genuine filters installed: 462-1171 oil, 299-8228 fuel, plus secondary fuel/water separator (filter date 6-30-2023)

• Clean cosmetic and mechanical appearance with intact wiring harness and ECM

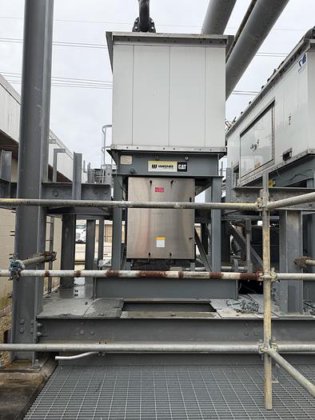

• Mounted within Wagner-branded weather-protective enclosure with radiator, supply/return ducting, and silenced exhaust stack

Amarillo Right-Angle Vertical Hollow-Shaft Gear Drive

• Manufacturer: Amarillo Gear Company, Amarillo, Texas, USA

• Model: SS250N

• Serial No.: 310086

• Service Rating: 190 HP @ 1,185 Vertical RPM

• Minimum Vertical RPM: 600

• Lubricant: AGMA No. 4 (ISO 150)

• FM Approved Standard Vertical Hollow Shaft Model for Fire Pump Service

• Year of Manufacture: 2004 or later (per nameplate copyright AGC 2004)

Vertical Turbine Pump Assembly

• Pump Serial No.: 1306ME002641-2

• Vertical column-mounted turbine pump with above-grade discharge head

• 8-inch ANSI Class 150 carbon-steel discharge piping with NIBCO flanged isolation valve

• Discharge gauge / instrumentation tap and conduit-routed signal cabling

• Above-grade pump head and packing/seal arrangement; can-style or wet-pit configuration (suction below grade)

Skid, Enclosure & Auxiliaries

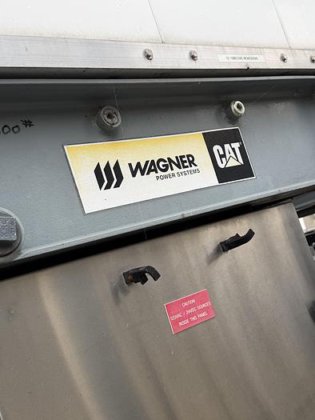

• Wagner Equipment Systems engineered skid with structural-steel base and grouted concrete pad mounting

• Weather-protective acoustic enclosure with louvered intake/discharge and silenced exhaust stack

• Local control / battery panel and intake air silencer

• 8" carbon-steel discharge spool with flanged check / isolation valves and pipe supports

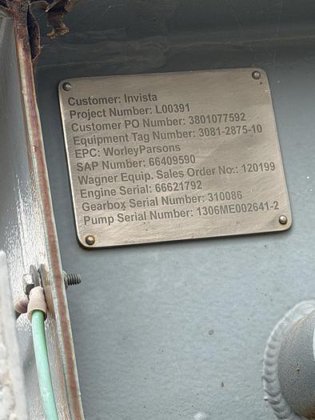

• Original Wagner Equipment Systems data plate with full project traceability

‍

Inspection / Condition Notes

• Unit is in as-removed / as-found condition; sold WHERE IS, AS IS, with no warranties expressed or implied.

• Recent CAT filter dating (mid-2023) and clean engine appearance suggest the package was maintained on a regular service schedule up to the time of decommissioning.

• Engine exterior is in good cosmetic condition; some surface rust on the exhaust stack, gear drive housing, and discharge piping consistent with outdoor coastal/industrial service.

• FM-approved fire-pump-style Amarillo gear drive provides flexibility for redeployment in fire-water, emergency cooling-water, or general industrial vertical-turbine pumping service.

• Buyer is responsible for all rigging, disconnection, fluid drainage, and removal.

• Photographs and OEM nameplates form part of this lot description. Buyers are encouraged to attend inspection day to verify components and condition.
